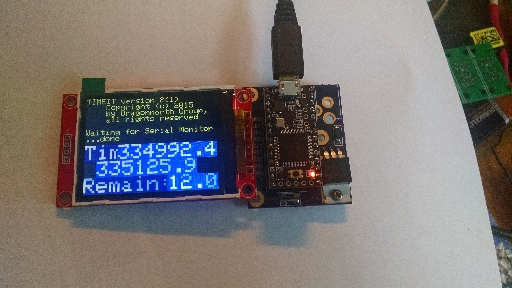

IMG_20150202_132319451
To make this I ordered the Color Display for the Teensy 3.1 and then ordered the Purple Test Board suggested with that module. I put them together with a Teensy 3.1 and for less than $20 you have a full graphics display and 256K Flash 64K RAM high capability embedded processor.

Next I bought a Teensy 3.1 and the associated audio module from pjrc:

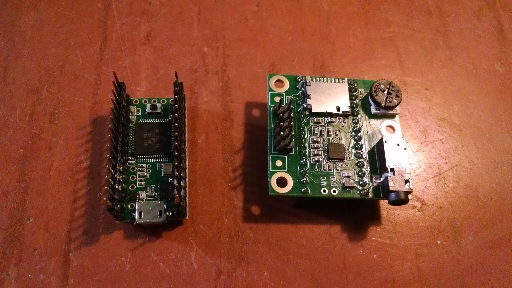

IMG_20140716_192543018
Teensy 3.1 processor
Audio Module

Some pins and connectors are required to make these into a stack:
