Story WildstarBarnConstruction created by Michael Newman

At 16 Nason Hill Lane Wildstar farm is building an indoor riding ring and adding 7 stalls, a tack room and a Barn Manager's apartment to an existing four stall barn. This story documents the progress of that project.

BuildingPermit



This building permit is for the foundation and the construction of the indoor riding arena. Getting the permit is the first major accomplishment of building Wildstar Farm.


20170518_131705



On the first day of digging this pile was made near the barn. Lots of rocks lie under the surface.

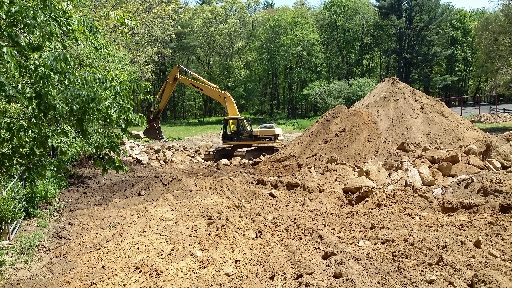

20170518_131718


20170524_174803



On the second day part of the first pile was removed and a pile of loam was stripped off the second half of the arena area.


20170601_091334_1



After stripping loam from another section a few inches of gravel was brought in to make a 'road' for construction vehicle access. This broad area will eventually be restored to being a paddock with a small road leading through it. During construction it is more like a parking lot.


20170605_154822_3



About two thirds of the loam was carted away. By good fortune the loam company was willing to truck it if we loaded it for them.


20170617_105656



All the smaller rocks were carted away. There are certainly more to come. The large rock in the right foreground will have to be split before it can be moved.


20170810_132442



The materials for the arena are delivered.


20170810_132454



More materials for the arena.


20170821_154048



The digging here is to form the bottom of the barn foundation. That foundation is buried 4 feet below the eventual barn floor.


IMG_20170825_081131



The wall that gets built where the tape is stretched will be 14 feet high. The tape is about 10 feet up the wall. This wall forms the end of the arena and is the foundation for one side of the barn.


IMG_20170829_144953



Digging the trench for the frost wall.


IMG_20170830_154102



Deep trench for the retaining wall. Lots of rock.


IMG_20170901_180550



Frost wall trencing.


IMG_20170908_143724



Putting in and compacting dense grade for footing base.


IMG_20170912_101344



Footing base completed at south end of frost wall.


IMG_20170912_101412



Looking north with footing base in place.


20171002_135107



October 2nd, 2017 first concrete delivery for the southern frost wall footings. This brand new truck brought the first load. It was the first day on the job for the truck, we were one of the first if not the first delivery it made.


20171002_135403



This is what the forms looked like just before the concrete was poured.


20171002_153413



Here is the frost wall with footing concrete completed.


20171004_170758



This is the north end of the footings ready to pour. Note the rebar sticking up which will become the north end retaining wall.


20171010_140602



South end wall about two thirds set up.


IMG_20171018_102550



North west footing with forms. Rebar sticking up at the top right is the top of the retaining wall.


20171018_111332



Building the tall retaining wall at the north end. The steel plus footing ends up being 14 feet high.


20171018_111816



This shows the whole ring. The top of the wall near the camera is the height of the riding surface. This is 10 feet lower than the floor of the barn left of center in the background.


20171018_111830



The eight feet of frost wall shown here is completely covered with dirt. The riding surface is at the top of the wall.


IMG_20171106_162549



Starting south end backfill.


IMG_20171107_113827



Water barrier on retaining wall.


IMG_20171107_113915



Water barrier on retaining wall.


IMG_20171108_110923



Adding the drain board insulation.


IMG_20171108_115100



Completed drainage board insulation on the west side.


20171113_121831



The pink board is insulation that is also drainage board.


20171128_150633



Under the edge of the existing barn is concrete underpinning that supports the old barn and will also become the foundation wall for the new barn structure that sits next to the old barn.


20171130_091749



Forms for the footings in the new barn.


20171205_142606



Forms for the walls and supports in the new barn. The enclosed area at the right becomes the heated space, the tack room.


20171208_100344



Concrete is pumped a long distance to fill the wall forms.


20171214_120303



Completed foundation for the new barn.


20171214_120508



New barn and arena foundations beyond with the old barn to the right.


IMG_1247



The first trusses get erected.


IMG_1248



View of the barn and arena site. Note the first trusses have been erected.

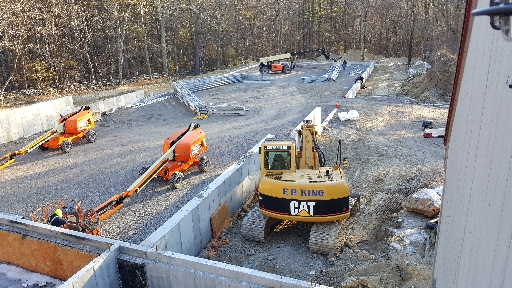

20180126_083358



Getting ready to erect the arena.

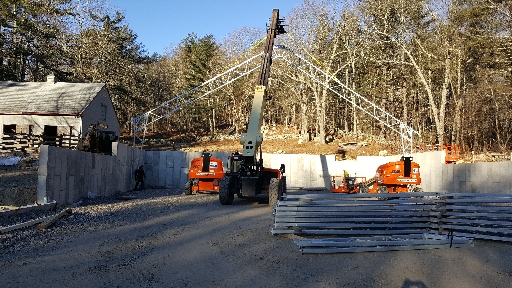

20180126_084035



First truss erection.

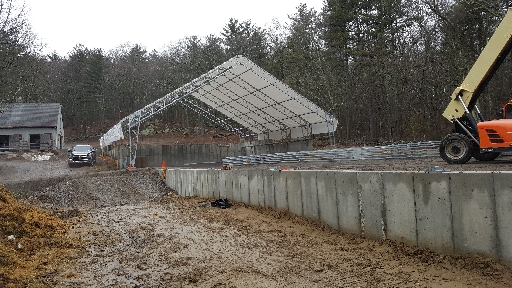

20180128_103019



Roof added to several trusses.

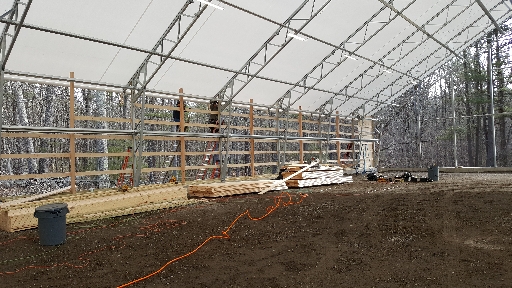

20180306_084707



Side wall construction.

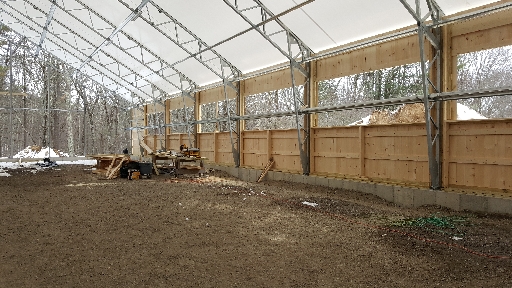

20180320_134853



West wall with windows. Garage doors will close these windows.

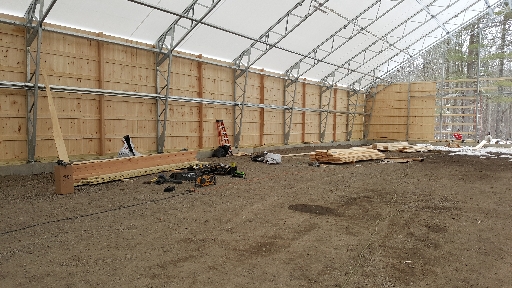

20180320_134856



East wall with siding added.


20180423_143438



Ring structure complete.


20180424_134805



Star of barn framing.


20180509_102818



First floor framing.


20180509_102853



First floor framing.


20180515_151150_001



Decking the first floor.


20180519_071912



Adding the outside wall of the second level.


20180519_071932



Looking down the aisle. Grooming stalls are near right. Tack room behind the walls to the right and stalls to the left.


20180522_120417



Start of the 2nd floor walls.


20180525_072355



Second floor looking at old barn.


20180525_161813



The long wall next to the arena is built flat and folded up after it is complete.


20180525_163218



The new barn takes shape between the old barn and arena.


20180530_073748



Erecting the second half of the arena wall (second floor of the barn).


20180531_151643



Apartment framing takes shape.


20180602_081323



Apartment Framing with roof rafters is complete.
