Story SolarInstall created by Michael Newman

Solar panel installation at Wildstar farm. There are 54 panels going on the roofs for a 17.6 kw system. Construction started July 15, 2013. The installation was substantially complete a week later. A long delay occurred for NSTAR to receive all of the approvals and to install the new pole and transformer they required. The pole was installed on October 3rd and approval to interconnect was received on that day. The panels started generating power on October 4th 2013 and the meter showed a 1Kwh gain by sundown.

Solar Generation total solar power generated and power usage is collected by a Solar-Log meter. (Consumption includes the cottage.)

Cottage power consumption is reported by a SunBug meter installed in the cottage.


SitePlanNewman

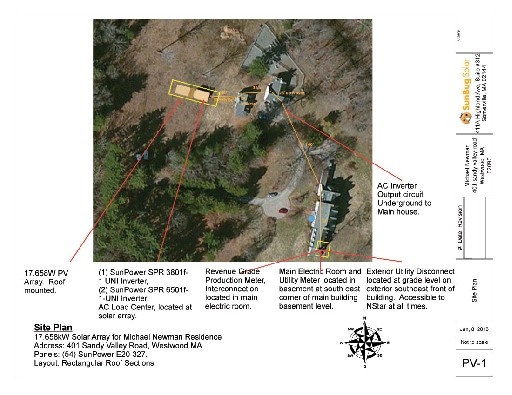

This site plan shows where the panels are located and how the power is routed back to the power feed at the south east end of the house.


IMG_20130627_103800_935

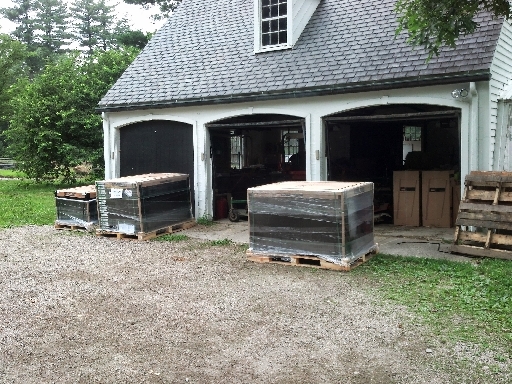

The solar panels and inverters (in the rightmost garage) were delivered a few weeks prior to the start of the installation.

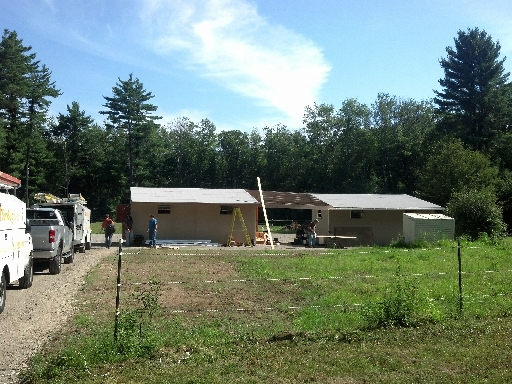

IMG_20130715_093440_267



The 54 panels go on the roofs of these two sheds and across the breezeway between them.

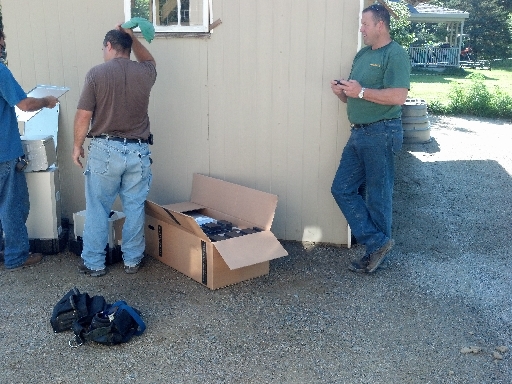

IMG_20130715_083954_410



Patrick is considering how to mount the inverters. They will go somewhere on this wall of the eastern stall.

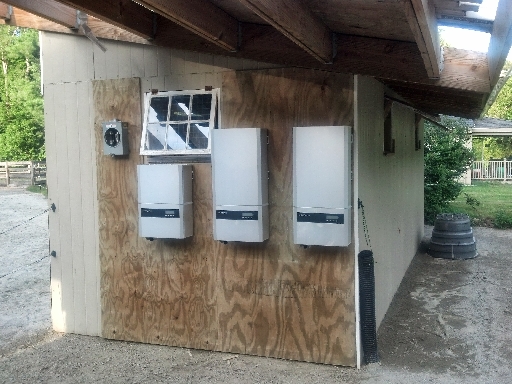

IMG_20130715_185510_791



Inverters and meters go on the wall of the building.

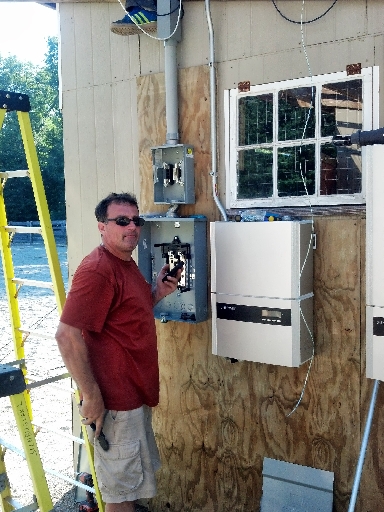

IMG_20130718_081410_261



Inverters and meters being installed.


IMG_20130719_065446_066

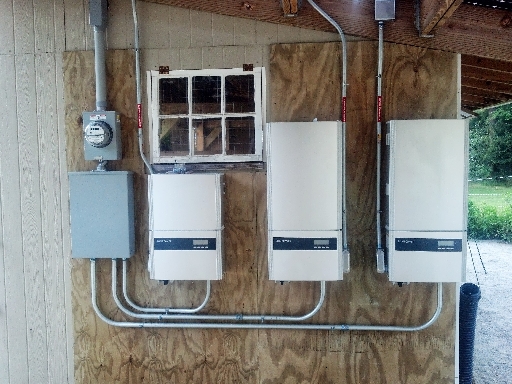

Inverters, breaker box and the solar meter are now completed.

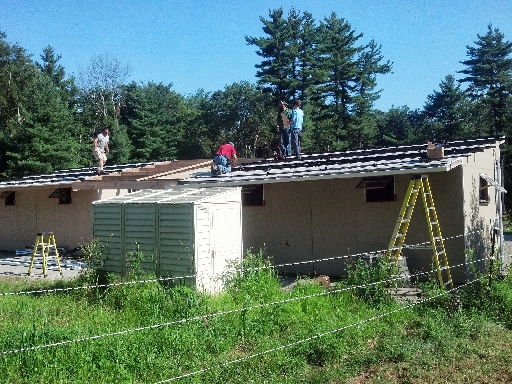

IMG_20130716_084550_163



On the second day racking is installed on the second stall roof. The racking is also adjusted so the panels will butt to each other on the three planes, west stall, breezeway and east stall.

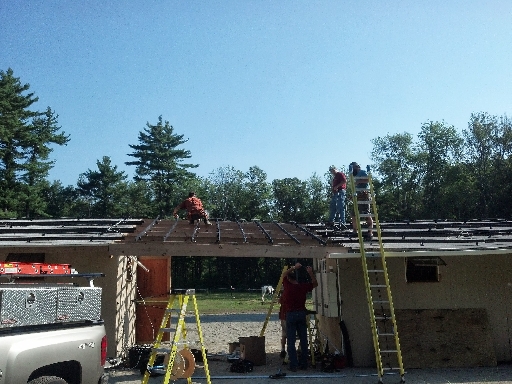

IMG_20130718_082825_148



Racking is completed.

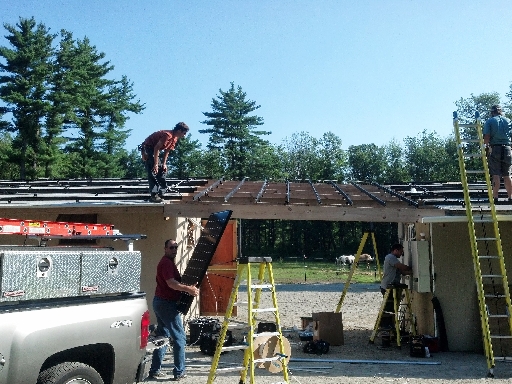

IMG_20130718_083348_007



The first panel goes up on the morning of day 3.

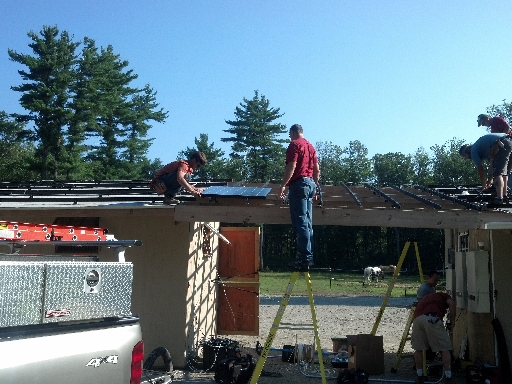

IMG_20130718_083441_330



... and gets clamped in place.

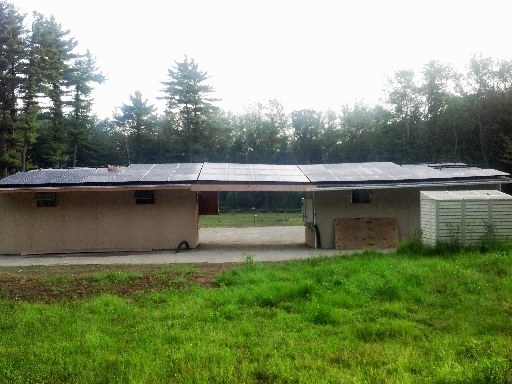

IMG_20130719_065530_229



Only a few panels left to go.

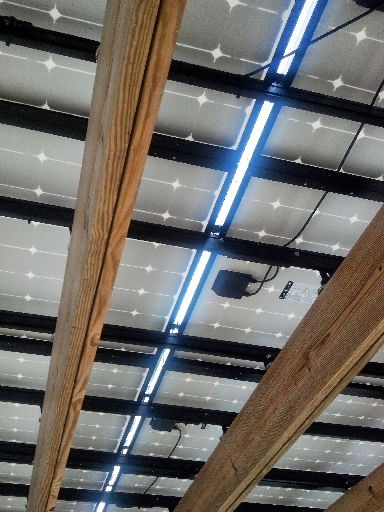

IMG_20130719_065457_977



Panels on the breezeway. The plan is to tape over the gaps to make a rain proof roof.

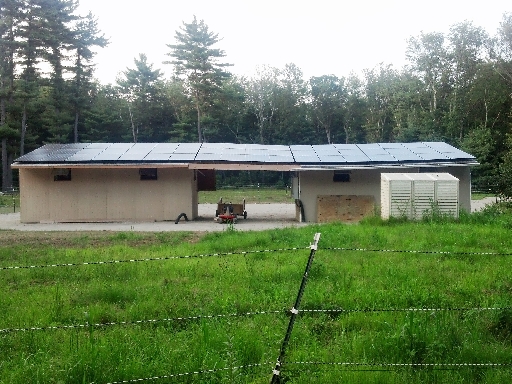

IMG_20130721_190211_629



The completed solar array. Now on to the wiring.

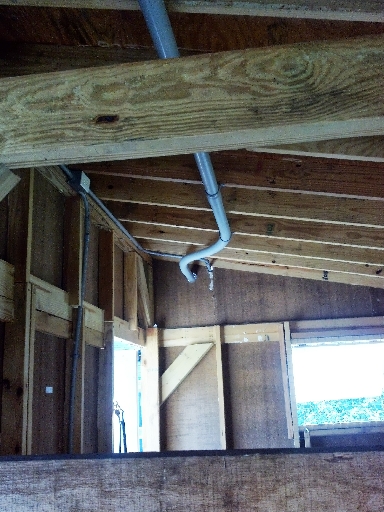

IMG_20130718_081454_080



Solar production goes over the top of the stalls to the cottage and then to the garage.

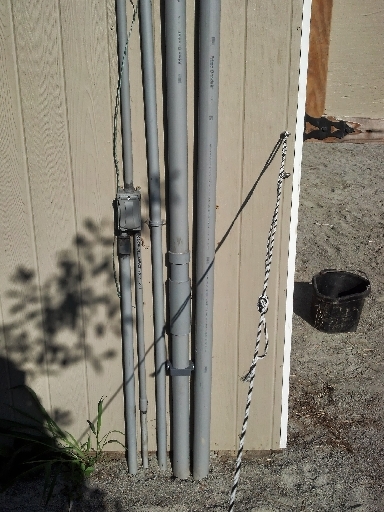

IMG_20130718_081551_556



Solar production goes down one of these conduits to the cottage. The smaller conduit carries 110 for the stalls in one conduit and internet for the solar in another. There is a spare 2 inch conduit.


IMG_20130718_081115_105

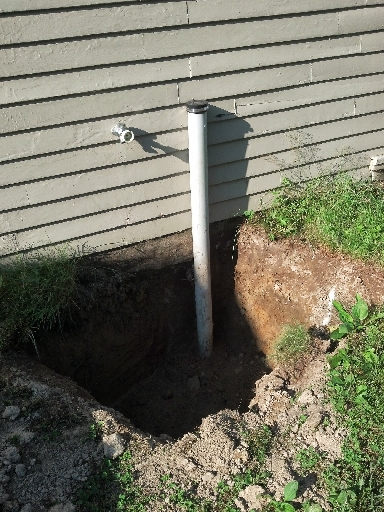

This conduit runs from the cottage to the garage. This is the cottage end. It carries the the electrical circuits for the cottage as well as the solar production circuits.


IMG_20130718_081056_242

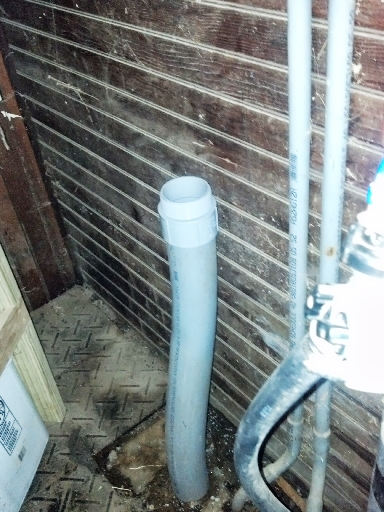

Here is where the Solar wiring and power from the cottage comes up in the rear of the garage. From here the conduit will go over the ceiling to the front of the garage.


IMG_20130722_191104_711

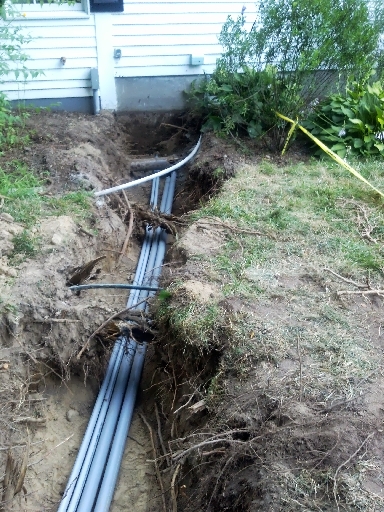

Once we were comitted to a trench for the solar feed to the house one conduit was put in for the solar power and three spares were put in to support network, phone etc. Here the lines meet the house.


IMG_20130722_191116_150

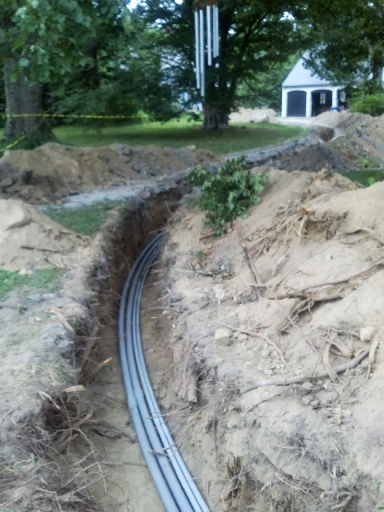

Turning around you can see the lines running down the driveway to the cottage.

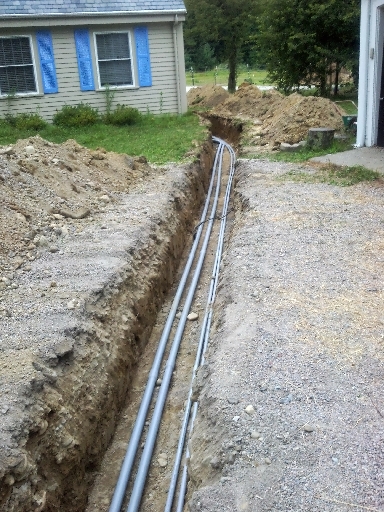

IMG_20130722_191336_598



They go around the corner to the back side of the cottage.


Trench20130723

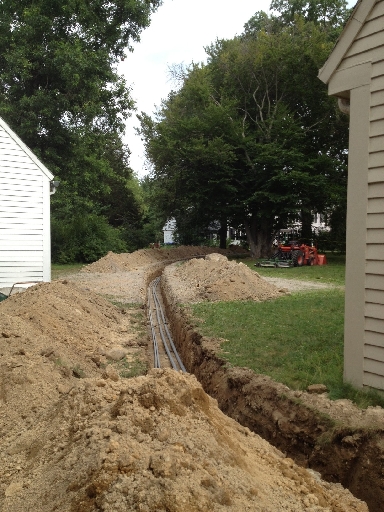

View back from the cottage toward the house. The trench got filled the morning after.

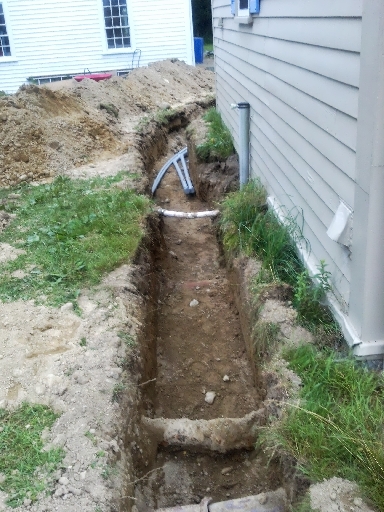

IMG_20130722_191416_805



The original plan was to use the 3 inch conduit aready installed for the electirc feed to the cottage and for the solar. Now that conduit will only be used for the cottage power.


IMG_20130723_183654_443

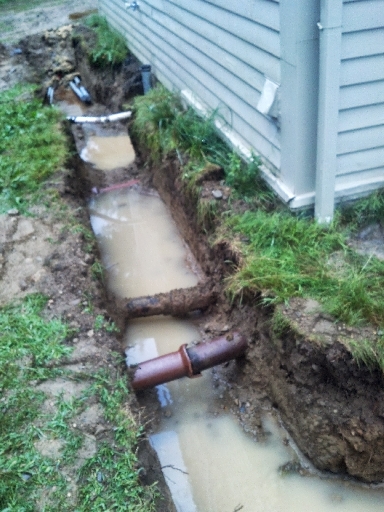

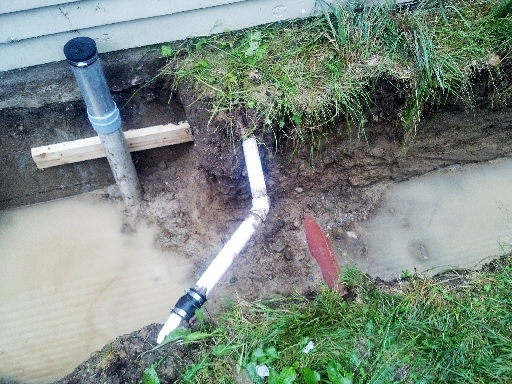

A day later a foot of rain fell and the open portions of the trench got a bunch of water. Note the perimeter drain from the cottage. Also note the clay basement drain and the white sump drain. Not sure were these come out. We suspect that the sump drain is interrupted by the sewer line.


IMG_20130723_183731_444



A better view of the power conduit and drains.

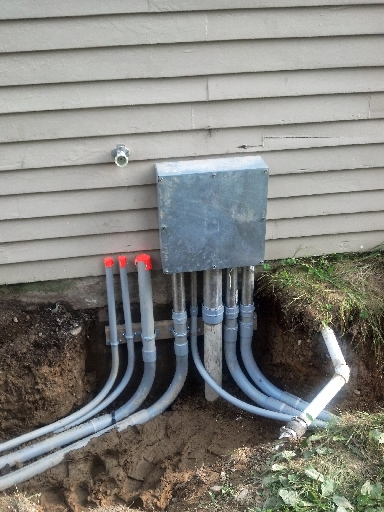

IMG_20130724_182049_683



Three spares run back to the house.

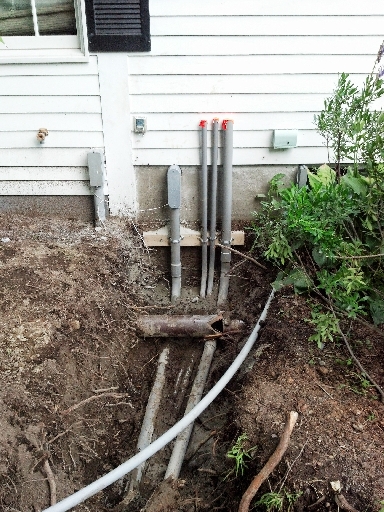

IMG_20130724_185339_406



Three spares arrive at the house.

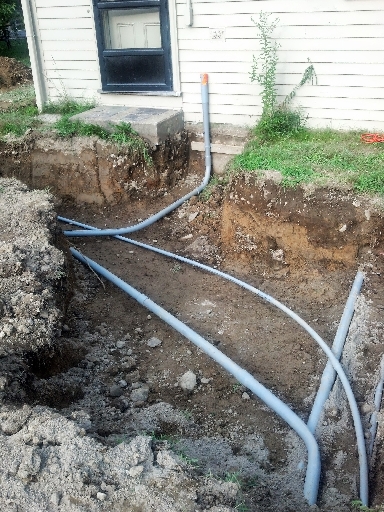

IMG_20130724_182013_558



Behind the cottage. (Spares at the right.)


IMG_20130725_083003_562

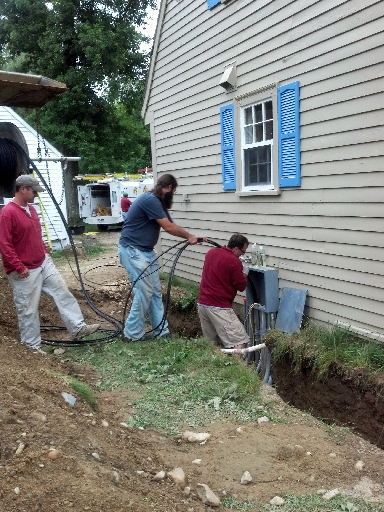

Feeding the power run.


IMG_20130725_083949_099

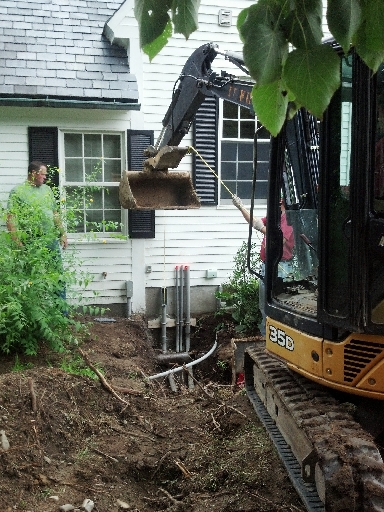

Pulling the power run at the house end.

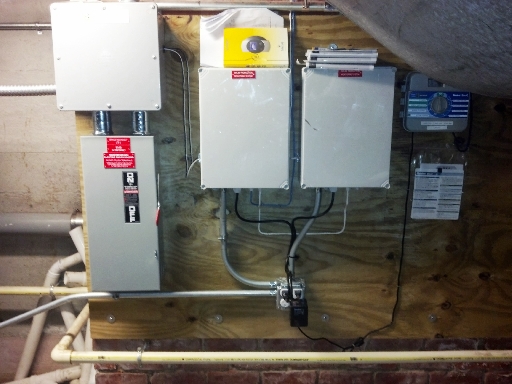

IMG_20130901_144739_201



Meters and power control near the electric meter in the house basement.

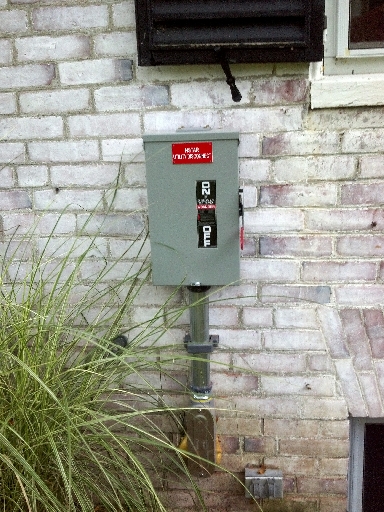

IMG_20130910_181534_100



Power company cutoff outside the rear of the house.


IMG_20131003_094317_746

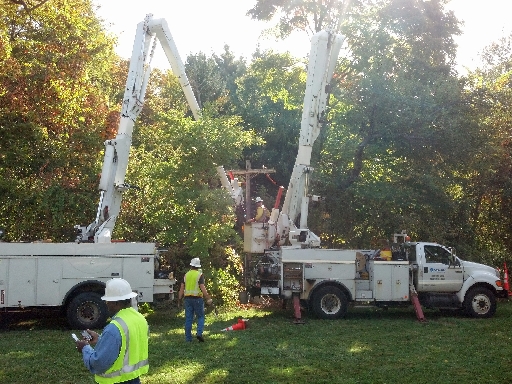

The crew from NSTAR dismounting gear from the old pole.


IMG_20131003_104356_640

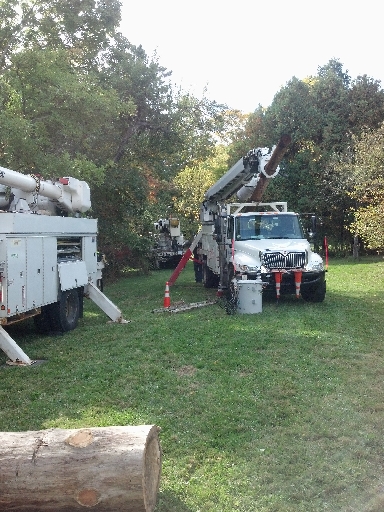

Bringing in the new Pole.


IMG_20131003_110957_008

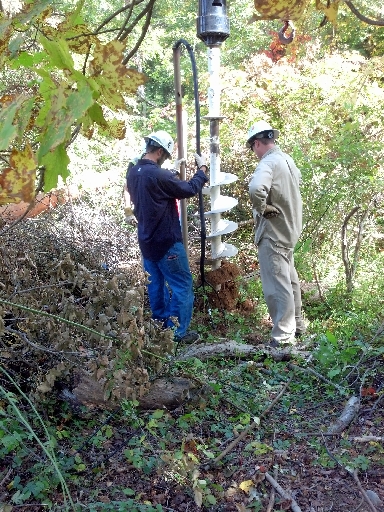

The old hole was not deep enough or wide enough for the new pole.


IMG_20131003_111502_995

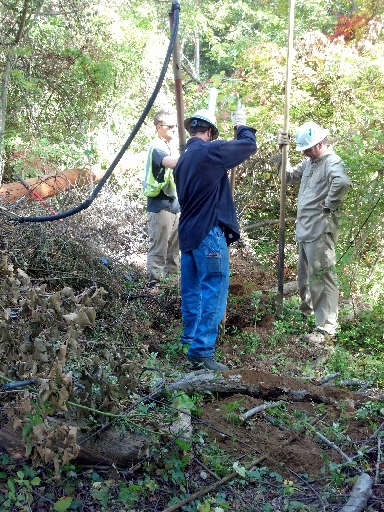

Lots of rocks in the hole forced opening the hole the good old fashioned way.

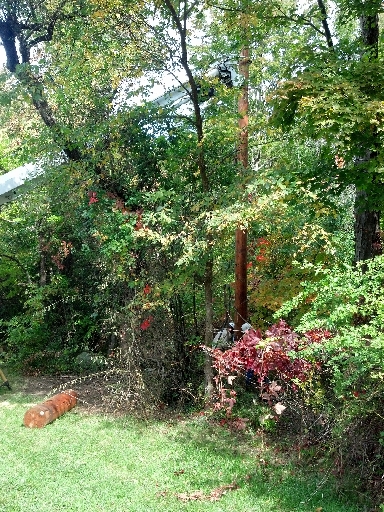

IMG_20131003_130348_307



Setting the new pole.


IMG_20131003_143946_514

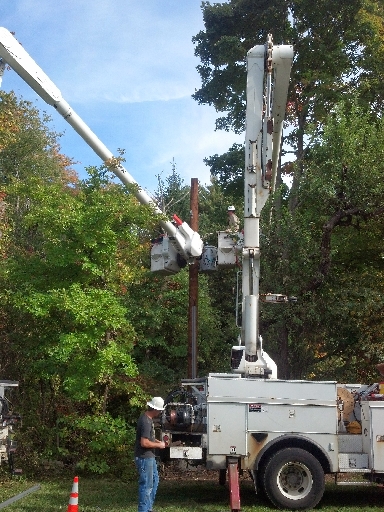

Hanging and wiring the transformer.


Solar20141014



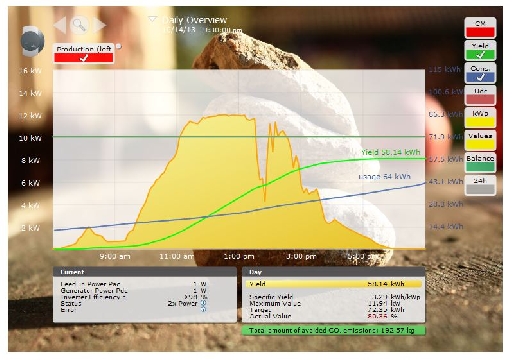

Log of solar generation from 14 October 2013.
